在披上玻璃的“霓裳”之后，建筑更具开放、自由的个性化特质，同时充满着现代感和艺术感。因此，玻璃从一开始便成为了设计师、建筑师，在打造建筑表皮时的首选，配上门窗、幕墙体系的高速发展，更是相得益彰，可谓是天造地设的“完美CP”……

一位国际知名的建筑师曾说过：“谁掌握了玻璃科技，谁就掌握了建筑外表皮的未来”。

After putting on the glass "neon clothes", the building is more open, free and individualized, and at the same time full of modern and artistic sense. Therefore, glass has become the first choice for designers and architects when creating architectural skins from the very beginning. Coupled with the rapid development of doors, windows and curtain wall systems, they complement each other, and it can be described as the perfect CP created in heaven...

An internationally renowned architect once said: "Whoever masters the glass technology, whoever masters the future of the outer skin of the building".

随着现代建筑水平的发展与进步，超高层、大跨度、异形结构……层次不穷，而“天马行空”的设计师更是不断提出：

大+++、高+++、复杂+++

的玻璃制造需求；同时，业主方对玻璃的隔热性、透光性、耐久性、安全性……也提出了更高的要求。

一种自爆率低、颜色一致、可见光透过率高、通透性好且技术含量高的玻璃产品诞生，成为了玻璃“新贵”的代名词，也成就了建筑玻璃应用新的开端，它就是超白玻璃！

追根溯“原”｜有了如此优秀的产品性能与特征，超白玻璃被业主、建筑师们更加广泛的应用于世界知名建筑项目中，这也令得建筑玻璃应用上的超长、超大纪录一次次刷新：

2008年：北京三里屯苹果店 国内第一家苹果店、亚洲旗舰店

玻璃尺寸：8500mm×2000mm

玻璃配置：15mm超白+16A+15mm超白中空

作为掀起全球设计革命的苹果店，其建筑的幕墙玻璃获得大家的高度关注，第一次实现如此大尺寸玻璃与建筑的完美结合，标志着以超白玻璃为主材的“超长超大”时代正式开启

With the development and progress of modern architecture, super high-rise buildings, large-spans, special-shaped structures...there are endless levels, and the designers of "horse-and-horse and empty" continue to propose:

Large +++, high +++, complex +++

At the same time, the owner has put forward higher requirements for the heat insulation, light transmittance, durability, and safety of the glass.

A glass product with low self-explosion rate, consistent color, high visible light transmittance, good permeability and high technical content was born. White glass!

Tracing back to the "original"｜With such excellent product performance and characteristics, ultra-white glass is more widely used by owners and architects in world-renowned construction projects, which also makes the application of architectural glass ultra-long and ultra-large records Refresh again and again:

2008: Beijing Sanlitun Apple Store, the first domestic Apple store and Asian flagship store

Glass size: 8500mm×2000mm

Glass configuration: 15mm super white+16A+15mm super white hollow

As the Apple store that has set off a global design revolution, the curtain wall glass of its building has attracted everyone's attention. It is the first time that such a large-scale glass and the perfect combination of architecture have been realized, marking the era of "ultra-long and ultra-large" with ultra-white glass as the main material. Officially opened

2009年：中国国际贸易中心三期

玻璃尺寸：11950mm×650mm

玻璃配置：19mm超白钢化＋3.04PVB＋19mm超白钢化（二楼宴会大厅玻璃肋）

超白玻璃的崛起，成为建筑设计与效果的最佳载体，更是受到业主炙手可热的追捧，在帝都CBD核心区的地标建筑上，超长超大玻璃得成长速度超乎我们的想象！

2009: China World Trade Center Phase III

Glass size: 11950mm×650mm

Glass configuration: 19mm super white tempered steel + 3.04PVB + 19mm super white tempered glass (glass ribs in the banquet hall on the second floor)

The rise of ultra-white glass has become the best carrier of architectural design and effect, and it is also highly sought after by the owners. In the landmark buildings in the core area of the Royal Capital CBD, the growth rate of ultra-long and ultra-large glass is beyond our imagination!

2010年：上海浦东苹果旗舰店

玻璃尺寸：12600mm×2578mm

玻璃配置：15mm超白弯钢+2.28mmSGP+15mm超白弯钢(面板)

玻璃配置：

12mm+2.28SGP+12mm+2.28SGP+12mm+2.28SGP+12mm+2.28SGP+12mm超白钢化（玻璃肋）

作为国内首个玻璃结构建筑，上海首家、大陆第二家苹果店坐落于著名的东方明珠塔脚下，那引人注目的40英尺圆柱形玻璃幕墙入口，成为世人瞩目的焦点，在建筑界拥有极高的地位！超长超大超白玻璃近乎完美的本色还原能力，帮助设计师营造出“空灵”的既视感。

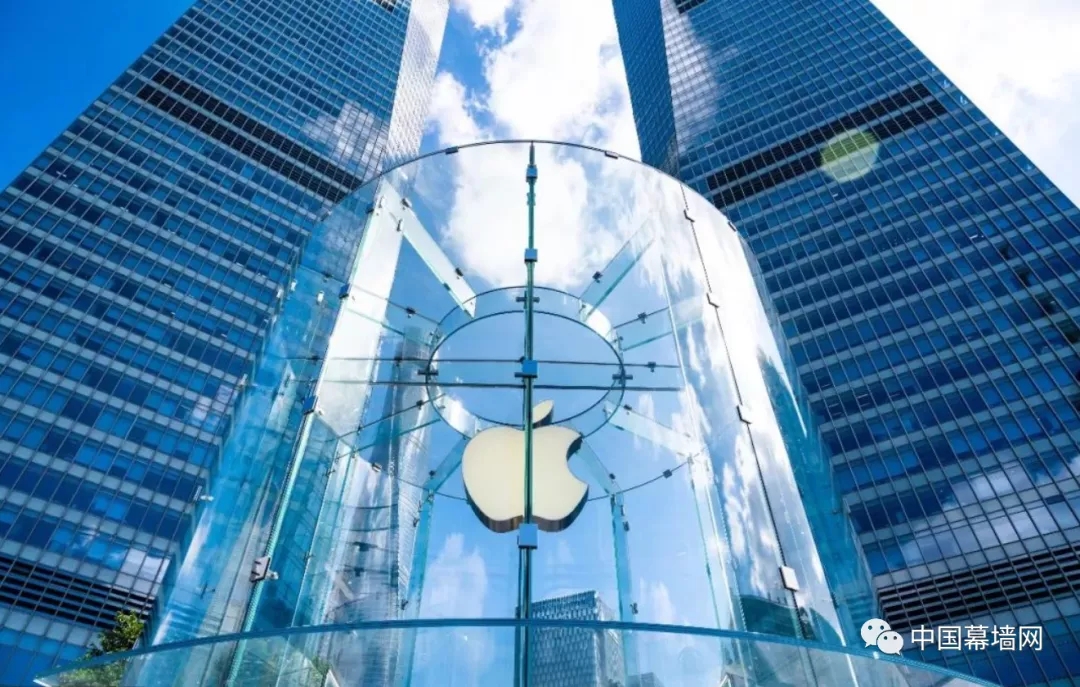

2010: Apple flagship store in Pudong, Shanghai

Glass size: 12600mm×2578mm

Glass configuration: 15mm ultra-white curved steel+2.28mmSGP+15mm ultra-white curved steel (panel)

Glass configuration:

12mm+2.28SGP+12mm+2.28SGP+12mm+2.28SGP+12mm+2.28SGP+12mm super white tempered (glass rib)

As the first glass structure building in China, the first Apple store in Shanghai and the second in mainland China are located at the foot of the famous Oriental Pearl Tower. The eye-catching entrance of the 40-foot cylindrical glass curtain wall has become the focus of the world’s attention. High status! The super-long, super-large and super-white glass has the almost perfect ability to restore the true colors, helping the designer to create an "empty" sense of sight.

2018年：香港太古坊

玻璃尺寸：17米

玻璃配置：12mm+1.52SGP+12mm+1.52SGP+12mm（面板）

玻璃配置：12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm（玻璃肋）

工作、娱乐、文化、自然在太古坊交汇相融，这片新旧建筑共存的室外大型空间，成为建筑师梦寐以求的设计场地。实现追求人与自然的和谐，追求更加通透性、更具现代化、更有艺术感的建筑效果。

2018: Taikoo Place, Hong Kong

Glass size: 17 meters

Glass configuration: 12mm+1.52SGP+12mm+1.52SGP+12mm (panel)

Glass configuration: 12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm+1.52SGP+12mm (glass ribs)

 Work, entertainment, culture, and nature merge together in Taikoo Place. This large outdoor space where old and new buildings coexist has become a design venue that architects dream of. Realize the pursuit of harmony between man and nature, and the pursuit of more transparent, modern, and artistic architectural effects.

2021年：北京城市副中心图书馆

玻璃尺寸：15050mm×2500mm

玻璃配置：

15mm+1.52SGP+15mm+1.52SGP+15mm+1.52SGP+15mm+1.52SGP+15mm+20Ar(暖边)+15mm+1.52SGP+15mm双银Low-E钢化夹胶中空全超白玻璃

以银杏树叶片为设计理念，每颗“树”型柱，都是由7层15mm夹胶玻璃所组成，共计使用了276块这样的超大玻璃。建筑宛如撑开的“森林伞盖”，寓意本土文化和知识的传承；同时，配合玻璃所带来的温度、光线、空间等“纯天然”效应，外立面营造出阅览的绝佳条件，吸引读者步入一个个温馨宁静的空间。

2021: Beijing City Sub-Central Library

Glass size: 15050mm×2500mm

Glass configuration:

15mm+1.52SGP+15mm+1.52SGP+15mm+1.52SGP+15mm+1.52SGP+15mm+20Ar (warm edge)+15mm+1.52SGP+15mm double silver Low-E tempered laminated hollow all-white glass

Taking ginkgo leaves as the design concept, each "tree"-shaped column is composed of 7 layers of 15mm laminated glass, and a total of 276 pieces of such oversized glass are used. The building is like an open "forest umbrella", implying the inheritance of local culture and knowledge; at the same time, with the "pure natural" effects of temperature, light, and space brought by the glass, the facade creates an excellent condition for reading. Attract readers into a warm and peaceful space.

“原”来如此｜以上项目中所采用的超长超大超白玻璃原片，都是由金晶集团生产，起到了关键的材料源头供给作用，让设计师的灵感及创意都变为了现实。

再创世界纪录，见证高光时刻！近期，经吉尼斯世界纪录认证，由奥雅纳担纲顾问，金晶集团提供玻璃原片，北玻完成深加工制造，再经江河幕墙施工的北京泰康大厦——首层大堂超大玻璃，以17.1米×3.107米（单块面积50.869平米），创造了玻璃领域一项新的“吉尼斯”世界纪录。

The "original" is like this｜The original ultra-long, ultra-large and ultra-white glass used in the above projects are all produced by Jinjing Group, which plays a key role in the supply of materials, making the designer's inspiration and creativity become a reality.

Set another world record and witness the highlight moment! Recently, certified by the Guinness World Records, Arup served as the consultant, and Jinjing Group provided the original glass. NorthGlass completed the deep processing and manufacturing, and then was constructed by the Jianghe curtain wall. 3.107 meters (a single area of 50.869 square meters), creating a new "Guinness" world record in the field of glass.

17米！！！玻璃还能更大吗？它的诞生又会给这个世界的建筑带来怎样的奇迹……正如泰康集团设计中心郭毅总的观点：希望这项纪录能不断地被中国同行刷新，体现中国制造和中国设计的不断进步！

中国幕墙网ALwindoor.com最新消息：23*3.3米 超长超大超白玻璃，在金晶集团已经正式下线！又一项行业纪录诞生了！

17 meters! ! ! Can glass be bigger? What miracle will its birth bring to the architecture of this world... Just as the general opinion of Guo Yi from Taikang Group Design Center: I hope this record can be constantly refreshed by Chinese counterparts, reflecting the continuous progress of Chinese manufacturing and Chinese design!

The latest news from China's curtain wall network ALwindoor.com: 23*3.3m ultra-long and ultra-large ultra-white glass has officially rolled off the Jinjing Group! Another industry record was born!

图上就是金晶集团一次性成功生产下线，世界最长、最大的23米*3.3米超白玻璃。

23米长的玻璃，您想过吗？您见过吗？一片玻璃8层楼高，大约是34个成年人并排站立的宽度……面积更是超过75平米，比刚刚获得吉尼斯世界纪录的“泰康大厦”的玻璃窗还大！（据中国幕墙网ALwindoor.com了解，来自吉尼斯总部反馈的信息，之前曾收到过德国某玻璃生产企业，提交的单块最大18米玻璃申报记录，最终因纪录的细分类别划分等原因，没能成功载入世界纪录……现在来看这是明智的抉择，如今“23米”闪亮登场，厉害了我的国！）

The picture above is the one-time successful production of Jinjing Group, the world's longest and largest ultra-clear glass of 23 meters * 3.3 meters.

Have you thought about the 23-meter-long glass? Have you seen it? A piece of glass is 8 stories high, about the width of 34 adults standing side by side...The area is more than 75 square meters, which is larger than the glass windows of the "Taikang Building" that just won the Guinness Book of World Records! (According to the Chinese curtain wall network ALwindoor.com, the feedback from the Guinness headquarters has previously received a German glass manufacturer’s submission of a single piece of glass with a maximum of 18 meters. The record was finally divided into categories and other reasons. , Failed to enter the world record... Now it is a wise choice. Now the "23m" is on the stage, which is amazing for my country!)

需要挑战的对手，只有自己｜自2008年以来，超长、超大的超白玻璃原片制造纪录，一直由金晶集团保持。从8米，12米，到18米，再到这次的23米…金晶只为超越自己，一次次突破创新，2021一举打破世界最长、最大的玻璃纪录，再次成功破解原片生产的“世界级”技术难题。

玻璃越长，出现缺陷的概率越大，对生产稳定性要求越严，对吊装储运挑战性更高，这些是超长超大超白玻璃生产中最大的核心技术难关。为了满足用户需求，金晶集团秉承以客户为中心，以满意交付为宗旨，对质量控制、生产计划、技术工艺、存储运输、安全保障各方面进行了大胆创新，小心求证，精心准备，大到热工参数稳定、吊装设备检测，小到掰边安排、存储方案，反复进行排查、试验、推演、模拟，确保保质、保量、按时交付。

The opponent that needs to be challenged is only oneself｜Since 2008, the record for the production of ultra-long and ultra-large ultra-white glass original films has been maintained by Jinjing Group. From 8 meters, 12 meters, to 18 meters, to 23 meters this time... Jin Jing only surpassed herself, breakthrough innovations time and time again, 2021 broke the world's longest and largest glass record in one fell swoop, and successfully cracked the original film production " World-class" technical problems.

The longer the glass, the greater the probability of defects, the stricter the requirements for production stability, and the higher the challenge for hoisting, storage and transportation. These are the biggest core technical difficulties in the production of ultra-long, ultra-large and ultra-white glass. In order to meet the needs of users, Jinjing Group adheres to the principle of customer-centric and satisfactory delivery. It has carried out bold innovations in quality control, production planning, technology, storage and transportation, and safety assurance. Stable working parameters, hoisting equipment testing, small side-by-side arrangements, storage plans, repeated investigations, tests, deductions, and simulations to ensure quality, quantity, and on-time delivery.

没有对市场需求的全心投入，没有对自我能力的不断挑战与超越，没有优秀团队在质量控制与生产过程中的完美追求，新纪录是不可能诞生的！此次23米超白玻璃的一次性批量成功生产，也彰显了金晶超白玻璃对质量控制的卓越追求，对用户需求的全心服务，对自我能力的不断超越。

那一抹水晶般的光泽，那令人无法遗忘的清澈，带着耀眼的光芒，为科技建筑、绿色住宅加持赋能，期待“金晶”等优秀的国潮品牌，肩负起民族品牌复兴的历史重任，与优秀的产业链上、下游企业一道，“金”诚合作，“晶”益求精，成就建筑之美，点亮生活之光。

Without full devotion to market demand, continuous challenge and surpassing of self-ability, and the perfect pursuit of quality control and production by an excellent team, new records cannot be born! The one-time mass production of 23-meter ultra-white glass successfully demonstrates Jinjing ultra-white glass's excellent pursuit of quality control, dedicated service to user needs, and continuous surpassing of self-ability.

That touch of crystal-like luster, that unforgettable clarity, with dazzling light, empowers technological buildings and green houses, and looks forward to "Jinjing" and other outstanding national brands, shouldering the historical responsibility of national brand rejuvenation , Together with excellent upstream and downstream enterprises in the industrial chain, "Jin" sincerely cooperates, "crystal" strives for perfection, achieves the beauty of architecture, and illuminates the light of life.

扩展阅读：

中国幕墙网ALwindoor.com “超白玻璃”有什么不一样？各种建筑门窗幕墙上的玻璃老是发生自爆，难道是因为深加工的工艺不好吗？各种节能玻璃、各种门窗上的玻璃老是发生节能失效，难道是因为中空胶的问题吗？no，这当中很多的问题，都是因为原片，一块优质的原片决定了“玻璃的一生”。

Extended reading:

What is the difference between ALwindoor.com "Super White Glass"? The glass on the curtain wall of various building doors and windows always explodes. Is it because the deep processing technology is not good? All kinds of energy-saving glass and the glass on all kinds of doors and windows always fail in energy-saving. Is it because of the hollow glue problem? No, many of the problems are due to the original film. A high-quality original film determines the "life of glass".

风光无限、华丽无暇的玻璃幕墙背后，也有着建筑业及门窗幕墙人的担忧，普通玻璃的“自爆”问题一直是业主的一块心病，也长期压抑着建筑师创造奇迹的激情。如何解决玻璃自爆问题，成为建筑玻璃工艺改革的核心，它影响着建筑玻璃的全面应用。

直到“超白玻璃”的诞生……打破了“鱼与熊掌”不可兼得的传统，让无限延伸的创意与安全可靠的实施完美的融合于一体！

Behind the infinite, gorgeous and flawless glass curtain wall, there are also worries from the construction industry and door and window curtain wall people. The self-explosion of ordinary glass has always been a problem for the owners, and it has also suppressed the architect's passion for creating miracles for a long time. How to solve the problem of glass self-explosion has become the core of architectural glass process reform, and it affects the comprehensive application of architectural glass.

Until the birth of "ultra-white glass"...breaking the tradition of "fish and bear's paws" that cannot have both, let the infinite extension of creativity and safe and reliable implementation perfectly blend together!

超白玻璃最早仅出现在世界发达国家，美国PPG、法国圣戈班、英国的皮尔金顿、日本的旭硝子……它具有的超高技术壁垒，让我国众多的玻璃生产商们望洋兴叹。

金晶集团成为中国“第一条”超白玻璃生产线的拥有者｜2005年7月国内第一条生产线超白玻璃成功下线，结束了超白玻璃完全依赖进口的历史，建设了填补国内空白的第一条浮法超白玻璃生产线，揭开了中国玻璃的新篇章。Ultra-white glass first appeared only in developed countries in the world, such as PPG in the United States, Saint-Gobain in France, Pilkington in the United Kingdom, Asahi Glass in Japan... its ultra-high technical barriers have caused many glass manufacturers in China to sigh.

Jinjing Group became the owner of China’s "first" ultra-white glass production line｜In July 2005, the first domestic ultra-white glass production line was successfully rolled off the assembly line, ending the history of ultra-clear glass relying solely on imports, and building a domestic gap The first float glass production line opened a new chapter for Chinese glass.

知识点：不是所有的超白玻璃，都叫““至纯”

超白玻璃可像其他浮法玻璃一样进行各种深加工，如钢化，弯曲，夹胶，中空装配等。以其优越视觉性能，将大大提高这些加工玻璃功能和装饰效果，因此，超白玻璃具有广泛的用途及广阔的市场前景，包括建材和太阳能等多个领域。其中令世人瞩目的上海中心、深圳平安金融中心、中国尊、大兴机场、亚投行总部、鸟巢、水立方、国家开发银行、上海港务中心、中国馆、阳光谷、上海浦东机场卫星厅、南京紫峰大厦、南京金融城、西安丝路会议中心、广州周大福中心、广州西塔、广州电视塔、深圳京基100等的建设项目中均有着“超白玻璃”的身影。

Knowledge point: not all ultra-white glass is called "Pure"

Ultra-white glass can be processed like other float glass, such as tempering, bending, laminating, hollow assembly, etc. With its superior visual performance, it will greatly improve the functions and decorative effects of these processed glass. Therefore, ultra-white glass has a wide range of uses and broad market prospects, including building materials and solar energy and other fields. Among them, Shanghai Center, Shenzhen Ping An Financial Center, China Zun, Daxing Airport, AIIB Headquarters, Bird Nest, Water Cube, China Development Bank, Shanghai Port Center, China Pavilion, Sunshine Valley, Shanghai Pudong Airport Satellite Hall, Nanjing Zifeng "Ultra-white glass" is found in the construction projects of the building, Nanjing Financial City, Xi'an Silk Road Conference Center, Guangzhou Chow Tai Fook Center, Guangzhou West Tower, Guangzhou TV Tower, and Shenzhen Jingji 100.
